Zhaga Book 18 Socket Receptacle Built In AC-DC Switching Power Supply 24V DC Auxiliary Power

Brand Name : LongJoin

Model Number : JL-710

Place of Origin : China

Price : negotiable

Packaging Details : Different packaging methods are adopted according to different modes of transport.

Payment Terms : Western Union,MoneyGram,T/T

Input voltage : Rated：120-277VAC Limited：85~305VAC

Output voltage : 24VDC

Rated power : 5W

Shell material : PBT

Certification : RoHS,RU,CE,

Real-world Scenarios : Smart City Infrastructure

Contact Now

Zhaga Book 18 Socket Receptacle Built In AC-DC Switching Power Supply 24V DC Auxiliary Power
JL-710 Zhaga Book-18 Receptacle Built-in AC-DC Switching Power Supply

The JL-710 product is a socket developed based on the ZHAGA BOOK18 interface size standard. It features a built-in AC-DC switching power supply that outputs 24VDC/5W.

This solution addresses application scenarios where customer drivers lack auxiliary voltage output for ZHAGA light controllers, offering a significantly lower cost alternative to replacing dimming drivers with auxiliary voltage output.

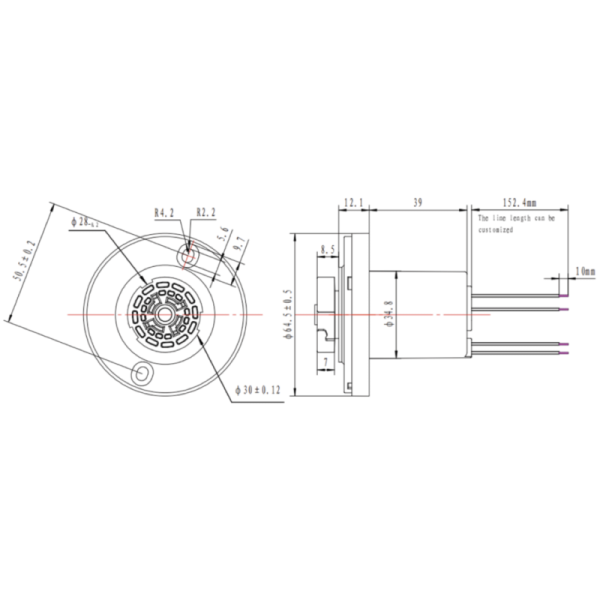

Product Dimensions
Zhaga Book 18 Socket Receptacle Built In AC-DC Switching Power Supply 24V DC Auxiliary Power
Product Features
  • Standardized interface defined in Zhaga Book-18
  • Support for top/side/bottom installation
  • Compact size allowing greater flexibility in luminaire design
  • Low cost solution
  • 85~305VAC input range
  • CLASS II driver
  • No-load power consumption ≤0.12W
  • Comprehensive protection: overvoltage/undervoltage/overcurrent/short circuit/open circuit/over temperature
  • 0~10V dimming transfer interface
  • IP66 rating (when used with our light controller)
  • RoHS and UL certification compliant
Technical Specifications
Input Specifications
Input Voltage Rated: 120-277VAC
Limited: 85~305VAC
Input Frequency Range 50/60Hz
Maximum Steady-state Input AC Current 30mA (full load, 220VAC)
Cold Start Surge Current (I²t) 0.009A²s (full load, 220VAC)
Efficiency 80% (full load, 220VAC)
Output Specifications
Output Voltage 24VDC
Accuracy ±2%
Rated Current 0.21A
Rated Power 5W
Ripple 100mVp-p
Noise 150mVp-p
Linear Adjustment Rate ±0.12%
Load Adjustment Rate ±5%
Start-up Time <340mS
Start-up Overshoot Voltage <5%
No Load Power Consumption <0.12W
Protection Features
Output Undervoltage Protection Hiccup mode, automatic recovery after abnormal removal
Output Overvoltage Protection Yes
Output Overcurrent Protection Yes
Output Short Circuit Protection Yes
Output Open Circuit Protection Yes
Over Temperature Protection Yes
Environmental Specifications
Operating Temperature -40℃~70℃
Storage Temperature -40℃~85℃
Operating Humidity 5%RH~99%RH
Storage Humidity 5%RH~99%RH
Other Specifications
Shell Material PBT
IP Level IP66 (when used with our light controller)
Mechanical Vibration IEC60068-2-6
Flammability Level UL94-V0
MTBF ≥80000h
Weight 85g
Certification Zhaga Book 18 Socket Receptacle Built In AC-DC Switching Power Supply 24V DC Auxiliary Power
* Real rated voltage range: 100~277VAC
* Real input frequency range: 47~63Hz
Frequently Asked Questions
Q1: What is a Zhaga Book 18 Socket Receptacle with built-in AC-DC power supply?
A: It is a Zhaga Book 18 compliant interface socket with an integrated AC-DC switching power supply, which converts mains input into stable 24V DC auxiliary power for intelligent lighting modules.
Q2: What is the benefit of a built-in AC-DC switching power supply?
A: It eliminates the need for an external power adapter, simplifies wiring and installation, improves integration, and ensures more stable and reliable power output.
Q3: What is 24V DC auxiliary power used for?
A: It provides safe and stable low-voltage power for lighting sensors, dimming modules, communication units and other intelligent accessories on smart street lights.
Q4: What are the advantages of using the Zhaga Book 18 standard?
A: It ensures universal mechanical and electrical interface compatibility, supports plug-and-play of modules from different brands, and facilitates later upgrade and maintenance.
Q5: In which scenarios is this receptacle mainly applied?
A: It is widely used in road lighting, smart street lamps, urban public lighting, park lighting and commercial intelligent lighting systems.
